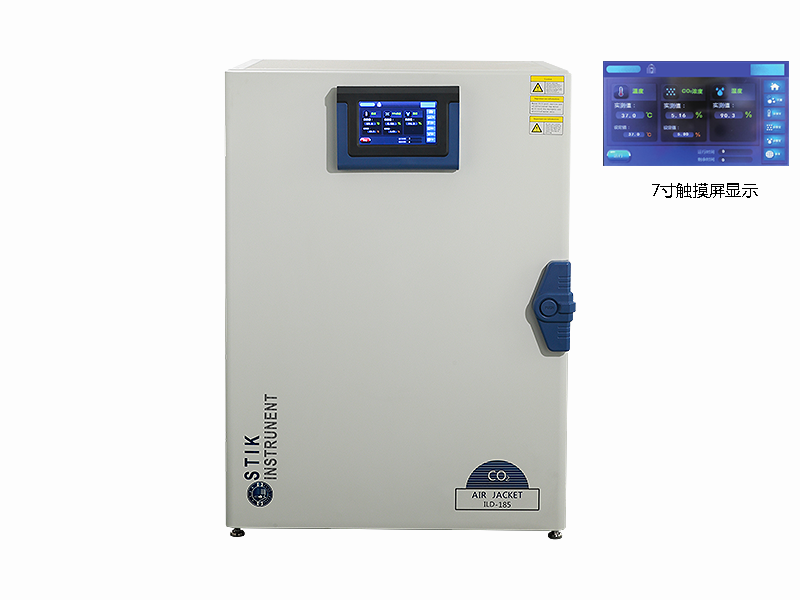

- 7-inch touch screen display control interface
- Humidity display function (optional)
- With automatic zero calibration
- 90 degree high temperature and high humidity disinfection
- Direct heating with glass door and control of glass door temperature rejection
- Glass door condensation and temperature uniformity
- Door switch monitoring function
- Logging function
- Fault monitoring, alarm, recording function
- Level 4 password function: login password, operator password, administrator password,
- Advanced administrator password
- Three power-off mode selection functions: power failure recovery, stop or restart
- Curve display function
- GPRS SMS alarm function (optional)
- Real-time data and historical data printing
- Ambient temperature detection function
- Comprehensive arc design to reduce bacterial growth environment
- 232 communication interface
- 485 communication interface
Precise temperature control:
Two circulation fans are equipped with two internal circulation university filters (HEPA):
|
|
The pollution brought in by the outside of the door is instantly cleaned and the culture is safer. The co2 concentration quickly returns to constant after the door is opened, and the cells are at the most Suitable for growth in a pH environment |
| Stable temperature provides the most trusted and cell culture environment | After the door is opened, the C02 concentration quickly returns to a constant state, and the cells grow in the most suitable pH environment. - for STIK products - for company B products |
90 degree high temperature and high humidity sterilization
|
|
After a third-party inspection, the 90-degree high-temperature and high-humidity sterilization method effectively achieves a thorough sterilization effect, which reduces the damage to the incubator electrical components. |
Reduce pollution, internal and external university filtration system (HEPA)
| Built-in dual college circulation filtration system (HEPA) | External intake HEPA filter; all gas entering the incubator passes through a 0.2um filter to prevent external contamination |
|
Carbon dioxide gas intake stabilization system: |
| The inner circular arc mechanism reduces bacterial contamination | Stable air pressure ensures a more stable carbon dioxide gas supply to the incubator |
| Gas cap carbon dioxide tank | Water jacket carbon dioxide tank | ||
| Model | ILDT-185IU | ILDT-185IH | ILW-185TI |
| Volume (liter) | 185 | 185 | 185 |
| Temperature control range | environment humidity+5~60℃ | ||
| Temperature uniformity | ≤±0.4℃ | ||
| Temperature control accuracy | 〈±0.1℃ | ||
| Temperature recovery time (1 minute to open the door) | ≤5 minute | ||
| Use environment | Less than the set temperature of 5 ° C (it is recommended that the ambient temperature is lower than the set temperature by 8 ° C for long-term use) | ||
| C02 concentration range | 0~20% | ||
| C02 control accuracy | ±0.1% | ||
| C02 sensor | Infrared (IR) sensor | ||
| C02 recovery Time (1 minute to open the door) | ≤5 minute | ||
| Disinfection method | UV lamp | 90 ° C high temperature and high humidity | Alcohol wipe |
| Internal circulation high efficiency filter | 2 | 2 | 2 |
| Air intake high efficiency filter | 1 | 1 | 1 |
| Heated glass door | Standard | Standard | Standard |
| Humidification method | Humidification tray | ||
| Humidity display | Optional | ||
| Humidity range | 92%RH±3% | ||
| Automatic cylinder converter | Optional | Optional | Optional |
| Printer | Optional | Optional | Optional |
| Liner size（W*D*H）mm | 540*510*680 | ||
| Dimensions（W*D*H）mm | 710*695*985 | ||
| Standard partition | 470*470（4塊） | ||
| Maximum power | About 800W | ||
| product weight | About 150kg | About 165kg | |
-The test technical data is only applicable to the test results under the no-load condition of the equipment and the ambient temperature is 25 degrees!
-The appearance and parameters of the product are subject to change without notice. The appearance of the product may vary due to photography and printing. Please understand!
-Humidity Sensor
-Automatic cylinder converter
- SMS alert (GPRS)
-printer
